PRO COMPLETE 44 | PORTABLE FLOORS
The Pro Complete 44 system consists of 22 mm solid hardwood parquet. The floor boards are preassembled into light weight, hand carried panels.
Underneath each floor panel several prefixed birch battens are mounted together with a soft polyurethane foam to provide correct shock absorption and resilience. Increased panel stability with reinforced aluminum edges. The floor panels are easily locked into position by means of pre-mounted metal brackets.
Lengthwise the panels have a tongue and groove connection and at ends the panels are joined using loose tongues. A supporting and protecting transition ramp forms a strong edge of the floor perimeter.
Facts
PERFORMANCE |
Area-elastic according to EN 14904 class A4 |
USE |
International tournaments, which require special line-markings, concerts and fairs. |
FLOORBOARD TYPE |
Prefinished 22mm 2-strip solid hardwood parquet |
PANEL SIZE |
Full panel 0.93 m² - Half panel 0.47 m² |
PANEL WEIGHT |
Full panel 18.5 kgs - Half panel 9.4 kgs |
SUBCONSTRUCTION |
Single layer batten system |
REQUIRED SUBFLOOR |
Flat |
CONSTRUCTION HEIGHT |
44 mm |
SANDING AND RE-SEALING |
Yes, to bare wood 8-10 times |
SUITABLE FOR UNDERFLOOR HEATING |
Yes |
![](/admin/public/getimage.ashx?Crop=0&Image=/Files/Images/SPORT/KONSTRUKTIONER/Junckers-pro-complete-44-med-systemkomponenter.jpg&Format=jpg&Width=1278&Quality=75)

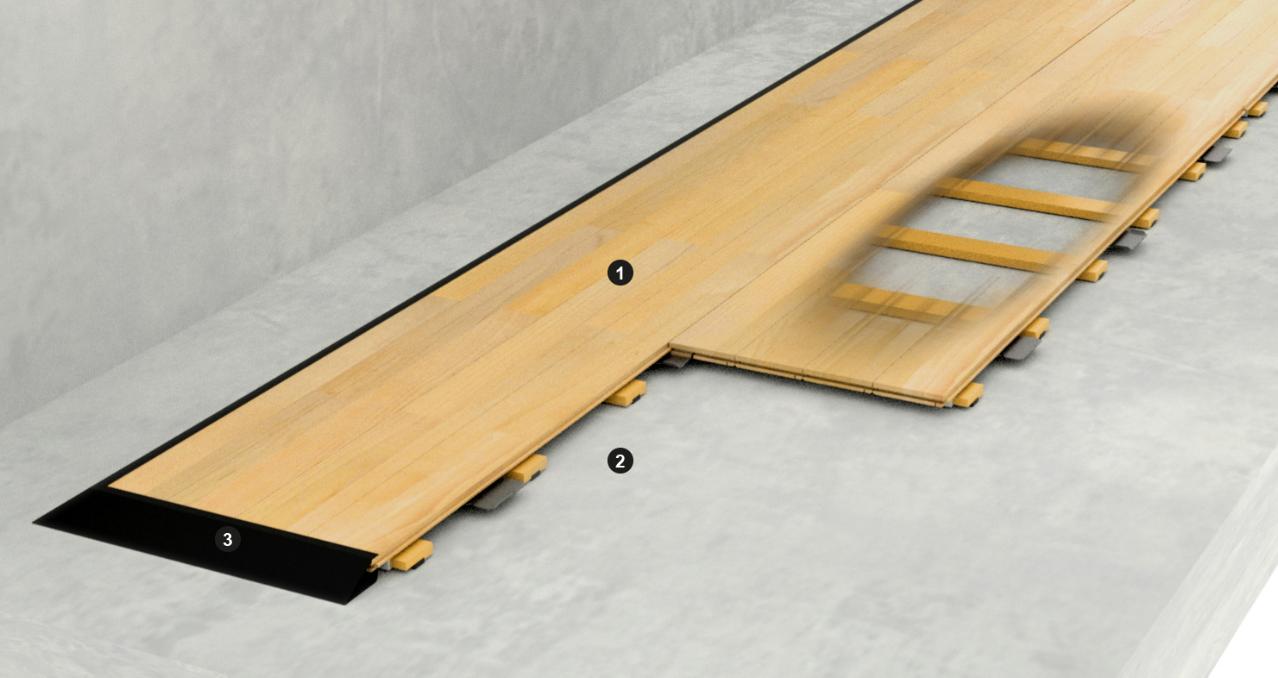

SYSTEM COMPONENTS
1. Floor panels:
- 1/1 panel 22 x 517 x 1800mm
- 1/2 panel 22 x 517 x 900mm
2. Junckers SportsFoam
3. Transition ramp
|
REQUIREMENTS EN 14904:A4 |
TEST RESULTS |
SHOCK ABSORPTION |
≥ 55 < 75 % |
60 % |
VERTICAL DEFORMATION |
≥ 2.3 < 5.0 mm |
3.3 mm |
BALL BOUNCE |
≥ 90 % |
95 % |
FRICTION |
≥ 80 ≤ 110 |
~ 85 |
ROLLING LOAD |
|
3000 N1 |
POINT LOAD |
≥ 1500 N |
5000 N ~ 500 kgs2 |
2. Junckers test with 100x100mm point load.
